Plate and Frame Heat Exchangers

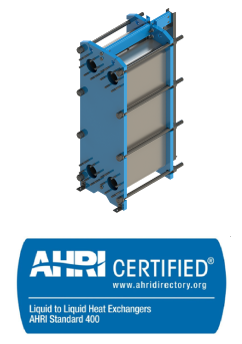

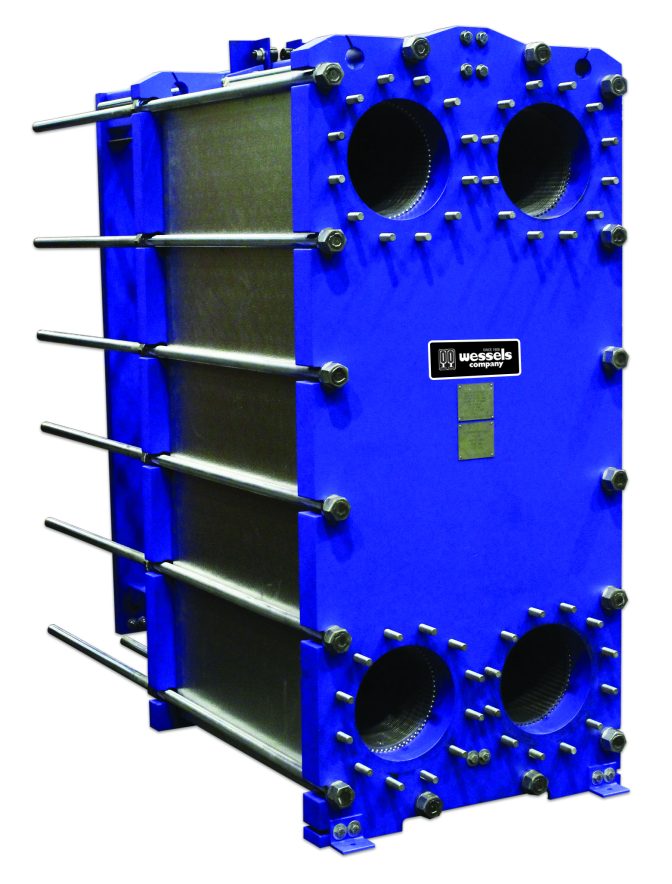

WesPlate® Heat Exchanger
The WesPlate® Heat Exchanger consists of an ASME certified frame and AHRI certified construction that contains a series of corrugated stainless steel plates designed to maximize turbulence and heat transfer. Gaskets are fixed between the plates to contain two separate fluids that flow alternatively to produce the highest rate of heat transfer. Wessels manufactures heat exchanger products built in accordance with the ASME boiler and pressure vessel code.
Wesplate®Heat Exchangers transfer heat from a building’s primary heating or cooling loop to a secondary loop. The heat exchanger can separate two systems that have very different operating pressures, operating fluids, (i.e. glycols, potable water, etc.) operating temperatures and cleanliness issues.
WP Series (ASME):
- CRN & AHRI certified
- Built in accordance with the ASME boiler and pressure vessel code
- 304SS, 316SS & Titanium plates with Nitrile & EPDM gaskets
- Capacities to 10,500 GPM and 50,000,000 BTU/hr
- 150 PSI (standard), 300 PSI & 400 PSI pressure ratings
WPDW Series (ASME):
- CRN certified
- Built in accordance with the ASME boiler and pressure vessel code (Non-ASME available)
- Double wall for potable applications
- 304SS, 316SS & Titanium plates with Nitrile & EPDM gaskets
- Capacities to 2,200 GPM and 50,000,000 Btu/hr
- 150 psi (standard) & 300 psi pressure ratings
