WesMag®


The Magnetic Advantage

WesMag® is an adaptable add-on that provides the power of magnetic filtration to Air & dirt Separators and Bag Filter Vessels. Wessels WVA-series Air & Dirt Separators with WesMag® are designed to eliminate entrained air and separate debris associated with start-up and maintenance of any hydronic system. The design incorporates multiple removable WesMag® stacks of neodymium rare-earth magnets in a stainless steel closed well. The design also features a removable end cover for coalescing medium access, and an air vent to automatically release air from the separator. The design and construction conform to ASME Section VIII, Div.1.

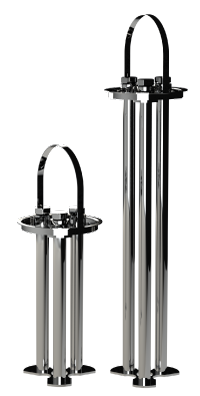

Removing WesMag® stacks from their stainless steel housing is easy and allows filtered magnetic particulate to be flushed from a blow-down valve

ASME StampWVA-WM1 Magnetic Air & Dirt Separator

WVA-WM1 Series Magnetic Air & Dirt Separators:

  • Single Magnetic Element
  • Removable Media
  • ASME certified
  • Rated to 250°F and 150 PSI

WVA-WM1 Series
Download submittal

ASME StampWVA-WM2 Magnetic Air & Dirt Separator

WVA-WM2 Series Magnetic Air & Dirt Separators:

  • Multiple Magnetic Elements
  • Removable Media
  • ASME Certified
  • Rated to 250°F and 150 PSI

WVA-WM2 Series
Download submittal

ASME StampHigh Velocity Magnetic Air & Dirt Separator

WVA-HV-WM1 Series Magnetic Air & Dirt Separators:

  • Single Magnetic Element
  • Removable Media
  • ASME certified
  • Rated to 250°F and 150 PSI

WVA-HV-WM1 Series
Download submittal

ASME StampHigh Velocity Magnetic Air & Dirt Separator

WVA-HV-WM2 Series Magnetic Air & Dirt Separators:

  • Multiple Magnetic Elements
  • Removable Media
  • ASME Certified
  • Rated to 250°F and 150 PSI

WVA-HV-WM2 Series
Download submittal

Instruction manual

Extend the Life of Filter Bags

The WesMag® can collect magnetic particulate like iron oxide that would otherwise degrade a bag filter over time. By adding WesMag®, you can extend the life of your filter bags and save money on replacements and maintenance. The removable neodymium rare earth magnets are housed in a stainless steel closed well for easy cleaning. WesMag® is available for all of Wessels Company’s WesFlo® bag filtration vessels.

BF Series:

Download Datasheet

  Divider

GB Series:

Download Datasheet

  Divider

4NBF Series:

Download Datasheet
