Air / Dirt Separators (ASME / Non-ASME)
Air & dirt separators are designed to eliminate entrained air and separate debris associated with start-up and maintenance of any hydronic system. The design incorporates a skim valve, used to eliminate floating debris, a removable end cover for coalescing medium access, and an air vent to automatically release air from the separator.
Air & Dirt Separators | Air Separators | Dirt Separators | Trim Package

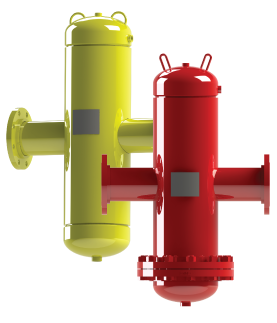

WVA Air & Dirt Separator
WVA Series Air & Dirt separators:
- Removable cartridge
- ASME certified
- Rated to 250°F and 150 PSI
WVA Series
| WVA-2 (Revit / .SAT) |
WVA-2-NPT (Revit / .SAT) |
WVA-2.5 (Revit / .SAT) |
| WVA-2.5-NPT (Revit / .SAT) |
WVA-3 (Revit / .SAT) |
WVA-3-NPT (Revit / .SAT) |
| WVA-4 (Revit / .SAT) |
WVA-4-NPT (Revit / .SAT) |
WVA-5 (Revit / .SAT) |
| WVA-6 (Revit / .SAT) |
WVA-8 (Revit / .SAT) |
WVA-10 (Revit / .SAT) |
| WVA-12 (Revit / .SAT) |
WVAN
(Non-Removable)
- Non-removable cartridge
- ASME certified
- Rated to 250°F and 150 PSI
WVAN Series
WVN-N
(Non-ASME/
Non-Removable)
- Non-removable cartridge
- Non-ASME
- Rated to 250°F and 150 PSI
WVN-N Series
WVA-G
- Grooved Series
- Removable cartridge
- ASME Certified
- Rated to 250°F and 150 PSI
WVA-G Series
High Velocity
WVA Air & Dirt Separator
WVA-HV Series Air & Dirt separators:
- Removable cartridge
- ASME certified
- Rated to 250°F and 150 PSI
WVA-HV Series
WVAN-HV
(Non-Removable)
- Non-removable cartridge
- ASME certified
- Rated to 250°F and 150 PSI
WVAN-HV Series
WVN-N-HV
(Non-ASME/
Non-Removable)
- Non-removable cartridge
- Non-ASME
- Rated to 250°F and 150 PSI
WVN-N-HV Series
WVA-WM1 Magnetic Air & Dirt Separator
WVA-WM1 Series Magnetic Air & Dirt Separators:
- Single Magnetic Element
- Removable Media
- ASME certified
- Rated to 250°F and 150 PSI
WVA-WM1 Series
WVA-WM2 Magnetic Air & Dirt Separator
WVA-WM2 Series Magnetic Air & Dirt Separators:
- Multiple Magnetic Elements
- Removable Media
- ASME Certified
- Rated to 250°F and 150 PSI
WVA-WM2 Series
High Velocity Magnetic Air & Dirt Separator
WVA-HV-WM1 Series Magnetic Air & Dirt Separators:
- Single Magnetic Element
- Removable Media
- ASME certified
- Rated to 250°F and 150 PSI
WVA-HV-WM1 Series
High Velocity Magnetic Air & Dirt Separator
WVA-HV-WM2 Series Magnetic Air & Dirt Separators:
- Multiple Magnetic Elements
- Removable Media
- ASME Certified
- Rated to 250°F and 150 PSI
WVA-HV-WM2 Series
WVAA Air Separator
WVAA Series Air Separators:
- Non-Removable Cartridge
- ASME certified
- Rated to 250°F and 150 PSI
WVAA Series
WVNA
(Non-ASME)
- Non-Removable Cartridge
- Non-ASME
- Rated to 250°F and 150 PSI
WVNA Series
High Velocity
WVAA-HV Air Separator
WVAA-HV Series Air Separators:
- Non-Removable Cartridge
- ASME Certified
- Rated to 250°F and 150 PSI
WVAA-HV Series
WVNA-HV
(Non-ASME)
- Non-Removable Cartridge
- Non-ASME
- Rated to 250°F and 150 PSI
WVNA-HV Series
WVAD Dirt Separator
WVAD Series Dirt Separators:
- Removable Cartridge
- ASME certified
- Rated to 250°F and 150 PSI
WVAD Series
WVAD-N
(Non-Removable)
- Non-Removable Cartridge
- ASME certified
- Rated to 250°F and 150 PSI
WVAD-N Series
WVND
(Non-ASME/
Non-Removable)
- Non-Removable Cartridge
- Non-ASME
- Rated to 250°F and 150 PSI
WVND Series
High Velocity
WVAD-HV Dirt Separator
WVAD-HV Series Dirt Separators:
- Removable Cartridge
- ASME certified
- Rated to 250°F and 150 PSI
WVAD-HV Series
WVAD-HV-N
(Non-Removable)
- Non-Removable Cartridge
- ASME Certified
- Rated to 250°F and 150 PSI
WVADHV-N Series
WVND-HV
(Non-ASME/
Non-Removable)
- Non-Removable Cartridge
- Non-ASME
- Rated to 250°F and 150 PSI
WVND-HV Series
Divider
WVA Trim Package Includes:
-
- #706 Air Vent
- Brass Ball Valve(s)
- Rated to 250°F and 150 PSI
- Carbon Steel Bushing & Close Nipple
